| 品牌：德国E+H | 型号：CYK10-A031 | 类型：便携式 |
| 适用对象：工业物体测温仪 |
介绍

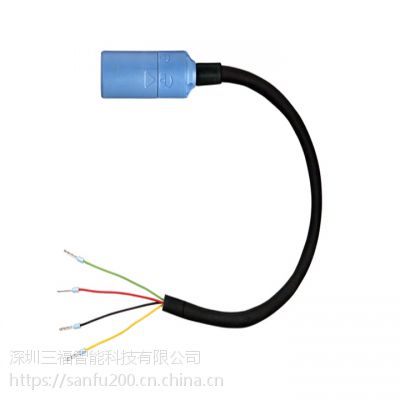

数字测量电缆CYK10
可同任意Memosens传感器一起使用的Memosens数字电缆
CYK10***Memosens传感器和变送器的完全防水连接。它的电感耦合***了变送器和介质的
电隔离，不会腐蚀。完全安全的信号传输可以防潮和潜在干扰.
优势
完全防水连接（防护等级IP 68）
无腐蚀连接
由于变送器和介质的电隔离，阻断了潜在的干扰
应用领域
Memosens数字电缆CYK10可用于Memosens系统，测量以下参数：
pH/ORP
溶解氧（色谱法）
电导率
反渗透
特征和规格
ORP /氧化还原电位
测量原理 ORP /氧化还原电极
应用 Measuring cable for contactless, inductive, digital transmission of measurement signals.
安装 Inductive plug- head for digital sensors with Memosens technology and wire terminals or
M12 plug to connect to the transmitter.
特点 Inductive, digital transmission of measurement signals and energy.
Not influenced by moisture, EMC-fields and corrosion.
设计 Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and
plug-head
No open contacts, resistant against humidity.
材料 PEEK
尺寸 Diameter: 6,3 mm / 0,25"
Cores: 2x2 cores, twisted paires
Length: up to approx. 100 m/328 ft
过程温度 -20... 135°C
温度传感器 For digital sensors with inductive plug-head with and without temperature sensor.
防爆认证 ATEX II 1G Ex ia IIC T3/T4/T6
FM, CSA IS Cl.1 Div 1 Gr. A-D
ATEX, NEPSI II 3G Ex nL IIC
TIIS
其他认证 Also available as TüV approved SIL version.
pH
测量原理 ORP /氧化还原电极
应用 非接触式、感性、数字传输测量信号
安装 采用Memosens技术的感性数字连接头
特点 测量信号及能量的感性、数字传输，不受湿气、EMC及腐蚀的影响
测量范围 不可用高阻抗电缆
设计 易操作，无开放触点
材料 PEEK
尺寸 "直径：6,3mm / 0,25"；芯：2x2双绞线；长度：可达100m/328ft"
过程温度 135℃
过程压力 50bar/725psi （135℃）
温度传感器 带/不带温度探头的传感器
防爆认证 ATEX II IG EEX ia IIC T3/T4/T6
入口防护 IP68
其他认证 Also available as TüV approved SIL version.
余氯、二氧化氯、总氯
溶解氧
测量原理 ORP /氧化还原电极
应用 Measuring cable for contactless, inductive, digital transmission of measurement signals.
安装 Inductive plug- head for digital sensors with Memosens technology and wire terminals o
r M12 plug to connect to the transmitter.
特点 Inductive, digital transmission of measurement signals and energy.
Not influenced by moisture, EMC-fields and corrosion.
设计 Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and
plug-head
No open contacts, resistant against humidity.
材料 PEEK
尺寸 Diameter: 6,3 mm / 0,25"
Cores: 2x2 cores, twisted paires
Length: up to approx. 100 m/328 ft
过程温度 -20... 135°C
温度传感器 For digital sensors with inductive plug-head with and without temperature sensor.
其他认证
电导率
测量原理 ORP /氧化还原电极
应用 Measuring cable for contactless, inductive, digital transmission of measurement signals.
安装 Inductive plug- head for digital sensors with Memosens technology and wire terminals o
r M12 plug to connect to the transmitter.
特点 Inductive, digital transmission of measurement signals and energy.
Not influenced by moisture, EMC-fields and corrosion.
设计 Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
No open contacts, resistant against humidity.
材料 PEEK
尺寸 Diameter: 6,3 mm / 0,25"
Cores: 2x2 cores, twisted paires
Length: up to approx. 100 m/328 ft
过程温度 -20... 135°C
温度传感器 For digital sensors with inductive plug-head with and without temperature sensor.
防爆认证 ATEX II 1G Ex ia IIC T3/T4/T6
FM, CSA IS Cl.1 Div 1 Gr. A-D
ATEX, NEPSI II 3G Ex nL IIC
TIIS
其他认证
